PRODUCT SPECIFICATIONS

Furnish Hood Depot’s ventilator model AM (ventilator without fire damper at the exhaust collar) as shown on plans, with a depth of and an overall length of and to meet the following requirements:

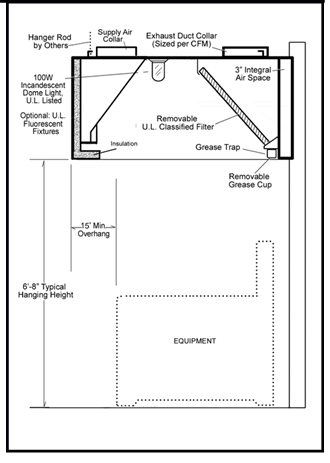

GENERAL DESCRIPTION: Ventilator is a conventional filter-type hood with continuous array of baffle U.L. Classified filters along the entire ventilator length. Ventilators up to 12’ to include semi-concealed pitched gutter which slopes to removable grease cup. Ventilators over 12’ include two pitched gutters that slope to removable grease cups located at each extreme end. Ventilator shall include means for hanging.

CONSTRUCTION MATERIALS: The ventila- tor shall be 18 gauge all-stainless steel con- struction. A number 4 finish shall be provided on all exposed surfaces.

LIGHT FIXTURES: Ventilator shall be equipped with U.L. Listed 100 Watt Dome Incandescent or Recessed 150 Watt In-candescent or Recessed Fluorescent fixtures. Light fixtures shall be prewired to a single point of connection at the factory.

APPROVALS: Ventilator to be U.L. Listed, list- ed by NSF, and in accordance with all recom- mendations of NFPA 96. The ventilator must meet all applicable codes.

APPLICATION

Wall mounted canopy style ventilator for use over medium duty equipment suitable for interior ceiling heights less than 8’6” by recessing into false ceiling.

DESCRIPTION

These AM Series models are for low velocity wall-mounted canopy ventilators with inter- nal compensated supply air which are U.L. Listed under the category of “Exhaust Hood Without Exhaust Damper.” Units are available in custom depths depending on particu- lar cooking battery layout. All models include a full array of U.L. Classified baffle type grease removing filters and a grease collecting gutter sloped to a removable grease cup at each end.

OPERATION

When properly operated and maintained, the liquefied grease is drained off into a con- tainer for periodic removal and cleaning.

MAINTENANCE

At periodic intervals (such as the end of each cooking day) the filters are to be re- moved and cleaned. They may be washed in a dishwasher, hand washed or soaked and rinsed.

AIR SUPPLY GUIDELINES

Appropriately conditioned supply air must be mechanically delivered to the space to replace the balance of the exhausted air. Generally 50-60% is so delivered through the hood with the remaining 40-50% flowing naturally from adjoining areas.

EXHAUST/SUPPLY FAN UNITS

Exhaust fan(s) and supply fan(s) are available. See fan section of catalog or web site for design information. Fans must be designed for Hood Depot air volumes and static pres- sure drop for the entire system and must be in compliance with local codes.

• Exhaust fan(s) should be properly sized and include UL762 listings
• Discharge ducts should be vertical when possible and located away from air intakes
• Supply fan(s) should be equipped with throw-away or cleanable type filters
• Exhaust and supply fans require a magnetic starter switch with 120 Volt holding coil and should be electrically interlocked for simultaneous operation
• Exhaust/ supply fans should be operated through a listed kitchen hood control panel

FIRE PROTECTION

NFPA 96 and most other codes require a fire extinguishing system for protection of both the duct collar and plenum areas of ventilators and for the protection of cooking equip- ment such as fat fryers, griddles, ranges and broilers which may be source of ignition of grease. Check with local fire authorities for exact requirements.

OPTIONAL EQUIPMENT

Consult Hood Depot regarding custom services addressing:

• Exhaust Fans, Supply Fans and rooftop units
• Fire protection systems
• Heat Recovery Units
• Reduced Throat (low air volume) Ventilators
• Utility Distribution Systems (UDS)
• Air Purification Systems
• Listed Control Panels
• ASTM 2519 High Efficiency Filters
• Top Enclosure Skirts
• S/S Filters
• Wall Panels
• 3” Left or Right Standoffs
• Demand Ventilation
• HEPA intake units
• Fluorescent Lights

Engineering Data

EQUIPMENT TYPE: LIGHT LOAD..............Steamers, ovens, kettles (under 20 Gals.), open burner ranges, pasta cookers, electric fryers, braising pans MEDIUM LOAD..........Kettles (under 60 Gals.), hot top ranges,gas fryers, griddles

Electrical

An optional Hood Depot Control Panel can be provided. A contactor or motor starter will be provided for each exhaust and supply fan. See section “Control Panels” in our catalog or visit our web site for more information.

Static Pressure

Static pressure drops across ventilator: Model AM.......................0.75 W.G. at the duct collar

Canopy Hanging Weights

Hood Depth 42” 48” 54” 60” (Other depths avail.) Wgt. per lin. ft. (LBS) 70 75 80 85

Airflow Data

U.L. Listed for 300CFM / L.F. of exhaust air and 180 cfm / L.F. of supply air. Contact factory for design criteria for specific appliance line layout designed for more CFM / L.F. Heavy load model available; call fctory for details.

Sizes Available

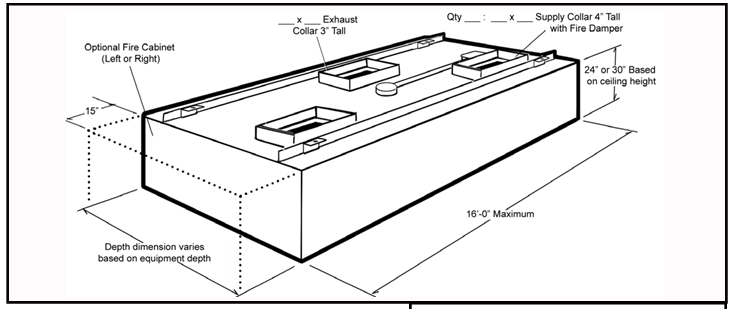

Canopies available in widths of 48”, 54” and 60”. Height can be 24” or 30” depending on ceiling height. Custom widths and heights avail- able; contact factory.

Lengths Available

Hood lengths available from 4’0” to 16’0” in 6” increments. For lengths 6’6” to 12’0” the maximum offset from centerline and/or make-up air openings to end of hood shall not exceed 6”0”. Lengths from 12’0” to 16’0” shall incorporate two exhaust ducts, each not to exceed 6’0” on center. Filters and lights are added in proportion to length.
